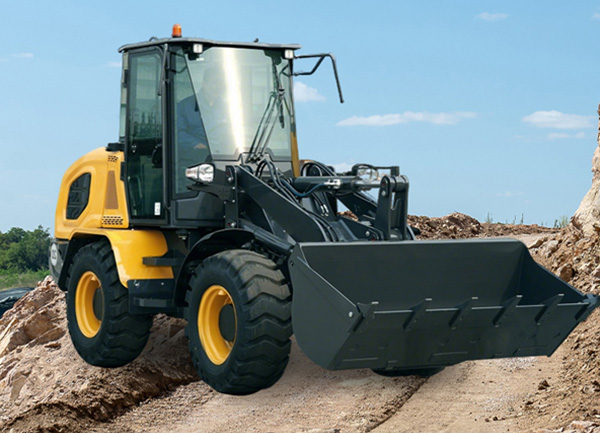

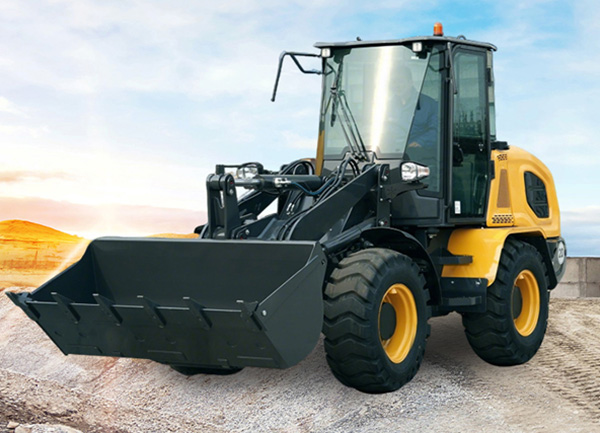

918轮胎式装载机

918

操作重量Operating weight with Bucket

Horizontal Pin(HPL-V)

6300Kg

Vertical Pin(SSL)

6400Kg

铲斗斗容Bucket capacity

1.0m³

发动机系统Engine system

品牌Manufacturer

Yanmar

型号Model

4TNV98CT-NTY

发动机输出功率≤ Max. engine output

53.7kW

功率转速≤ At max. rpm

2500rpm

发动机排量Displacement

3.319L

缸径Bore

98mm

冲程Stroke

110mm

电气系统Electric system

系统电压Voltage

12V

电池容量Battery capacity

120Ah

发电机额定功率engine rated power

12V/80A

起动机输出功率engine output power

3kW

主要性能-配备水平销快换和标准铲斗
Main Performances with Bucket- Horizontal Pin(HPL-V)

掘起力（转斗）≤ Max. digging force(bucket)

58kN

牵引力≤  Max.traction

52kN

提升高度提升能力≤ Max.lifting height lifting capacity

3000Kg

对直状态极限倾翻载荷Bucket tipping loads（straight）

4582Kg

全转向极限倾翻载Bucket tipping loads（ Full Turn）

3850Kg

驱动形式Drive type/drive system

静液压传动

Hydrostatic

行驶速度Travel speed

20/9 km/h

差速锁
Differential locks

选配,前后桥均配
Optional，both axles

动臂提升时间Lift time

5s

下降时间Lowering time

4.5s

翻斗时间Dump time

1.5s

转向角≤ Max articulation

38± °

摆动角≤ Max oscillating

9± °

主要性能-配备竖直销快换和标准铲斗
Main Performances with Bucket- Vertical Pin(SSL)

掘起力（转斗）≤ Max. digging force(bucket)

48kN

牵引力≤  Max.traction

52kN

提升高度提升能力≤ Max.lifting height lifting capacity

3000Kg

对直状态极限倾翻载荷Bucket tipping loads（straight）

4100Kg

全转向极限倾翻载Bucket tipping loads（ Full Turn）

3600Kg

驱动形式Drive type/drive system

静液压传动

Hydrostatic

行驶速度Travel speed

20/9 km/h

差速锁
Differential locks

选配,前后桥均配
Optional，both axles

动臂提升时间Lift time

5s

下降时间Lowering time

4.5s

翻斗时间Dump time

1.5s

转向角≤ Max articulation

38± °

摆动角≤ Max oscillating

9± °

液压系统Hydraulic system

工作液压系统流量Work hydraulics discharge volume

92.5L/min

工作液压系统压力Work hydraulics working pressure

24MPa

驱动液压系统流量Drive hydraulics discharge volume

187.5L/min

驱动液压系统压力Drive hydraulics working pressure

40.5MPa

转向液压系流量Steer hydraulics discharge volume

92.5L/min

转向液压系统压力Steer hydraulics working pressure

19MPa

举升油缸数量Lift cylinders

2

翻斗缸数量Tilt cylinders

1

转向缸数量Steering cylinders

1

服务保养加注Service Refill

燃油箱Fuel tank

80L

发动机机油Engine oil

5.5L

发动机冷却液Engine coolant

15L

液压油箱Hydraulic tank

47L

整个液压系统Hydraulic System (including tank)

120L

前桥Front axle oil

13L

后桥Rear axle oil

13L

传动系统Transmission

2L

噪音水平Sound Level

室内噪音LpA Sound pressure level in cab according to ISO 6396

78dB（A)

室外噪音LWA External sound level according to ISO 6395 and EU Noise Directive 2000/14/EC

101dB（A)

外形尺寸-配备水平销快换和标准铲斗Dimensions with Bucket- Horizontal Pin(HPL-V)

标配铲斗Standard bucket

A

整机长度Overall Length

5520mm

B

整机长度（不加铲斗）Total Length

4773mm

C

车桥中心到铲斗中心轴距离Center of axle up

1108mm

to the bucket pivot point

D

轴距Wheel base

2150mm

E

后悬Rear overhang

1445mm

F

整机高度Height (min./max.)

2745mm

H

座椅高度Seat height

1660mm

J

总工作高度Total working height

4193mm

K

铲斗铰销高度≤ Max. height of the

3354mm

bucket pivot point

L

铲斗放平高度Load-over height

3155mm

M

卸载高度Dumping height

2660mm

N

卸载距离Dumping reach

723mm

O

下挖深度Scraping depth

90mm

P

整机宽度Overall width

2060mm

Q

轮胎中心宽度Track width

1550mm

S

离地间隙Ground clearance

370mm

T

转弯半径铲斗外侧≤ Maximum radius outside

4602mm

U

转弯半径主机外侧Radius on the outer edge

4123mm

V

转弯半径内侧Inside radius

2163mm

W

转弯角度Articulation angle

38°

X

提升高度收斗角≤ Rollback angle at max. lift height

58°

Y

提升高度卸载角≤  Max. angle for bucket emptying

42°

Z

地面位置收斗角Rollback angle on the ground

43.7°

外形尺寸-配备竖直销快换和标准铲斗Dimensions with Bucket- Vertical Pin(SSL)

标配铲斗Standard bucket

A

整机长度Overall Length

5770mm

B

整机长度（不加铲斗）Total Length

4903mm

C

车桥中心到铲斗中心轴距离Center of axle up

1108mm

to the bucket pivot point

D

轴距Wheel base

2150mm

E

后悬Rear overhang

1445mm

F

整机高度Height (min./max.)

2745mm

H

座椅高度Seat height

1660mm

J

总工作高度Total working height

4315mm

K

铲斗铰销高度≤ Max. height of the

3354mm

bucket pivot point

L

铲斗放平高度Load-over height

3125mm

M

卸载高度Dumping height

2478mm

N

卸载距离Dumping reach

883mm

O

下挖深度Scraping depth

120mm

P

整机宽度Overall width

2060mm

Q

轮胎中心宽度Track width

1550mm

S

离地间隙Ground clearance

370mm

T

转弯半径铲斗外侧≤ Maximum radius outside

4667mm

U

转弯半径主机外侧Radius on the outer edge

4123mm

V

转弯半径内侧Inside radius

2163mm

W

转弯角度Articulation angle

38°

X

提升高度收斗角≤ Rollback angle at max. lift height

58°

Y

提升高度卸载角≤ Max. angle for bucket emptying

42°

Z

地面位置收斗角Rollback angle on the ground

43.7°

功能配置Functional configuration

FNR控制FNR Control

标配Standard

喇叭按钮Horn Button

标配Standard

高低速切换Gear Selection

标配Standard

风扇反转Fan Reverse

标配Standard

液压锁Pilot Lockout

标配Standard

快换油缸锁Quick Coupler Enable

标配Standard

快换缸伸缩Quick Coupler

标配Standard

整车灯光Light Button

标配Standard

后窗加热Heated Rear Window

标配Standard

后处理再生/禁止再生Regeneration Switch

标配Standard

前后雨刮Front/Rear Wiper

标配Standard

发动机恒定转速使能(手油门)Hand Throttle

标配Standard

发动机恒定转速调节Speed Increment/Decrement

标配Standard

爬行功能Creep Control

标配Standard

牵引力调节Rim pull Control

标配Standard

差速锁Differential Lock

选配Optional

定速巡航Cruise Control

选配Optional

后视镜加热Heated Mirror

选配Optional

稳定模块Ride Control

选配Optional

轮胎Tire optional

轮胎Tires

 标配轮胎Standard tires：16/70-20

选配Optional tires：

405/70R20 子午线轮胎

460/45R22.5 宽基子午线轮胎
